CTA Series Timer Counter Tachometer

2750 INR/Unit

Get a Price/Quote

Product Details:

Usage Used for batch counting, total counting, length measurement, position control, accurate timing, rotation speed
Size 48mm x 48mm
Power Supply 100~240VAC,50/60Hz or DC24V
Product Type CTA Series Timer Counter Tachometer
Power Consumption 5 Watt (W)
Color White
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

CTA Series Timer Counter Tachometer Price And Quantity

Minimum Order Quantity 1 Unit
Price 2750 INR/Unit

CTA Series Timer Counter Tachometer Product Specifications

Color White
Power Consumption 5 Watt (W)
Power Supply 100~240VAC,50/60Hz or DC24V
Product Type CTA Series Timer Counter Tachometer
Usage Used for batch counting, total counting, length measurement, position control, accurate timing, rotation speed
Size 48mm x 48mm

CTA Series Timer Counter Tachometer Trade Information

Payment Terms Cash Advance (CA)
Supply Ability 1000 Unit Per Day
Delivery Time 1 Days
Main Domestic Market All India

Product Description

CTA Series Timer Counter Tachometer facilitates modern management in industry, can be easily installed in a shorter period of time, faster return of investment guaranteed. It is highly acclaimed in the industry for its accurate results, optimum quality and low maintenance cost features. It is manufactured at our sophisticated production unit using high quality materials and advanced technology in compliance with the set industry standards. Further, this CTA Series Timer Counter Tachometer is available in various specifications at economical prices in order to cater the varied requirements of our esteemed clients.

Specification

Dielectric strength	: 2,000VAC; 50/60Hz for 1 minute
Display	Double-line 6-digit LCD display
External power supply	12VDC +/- 10%; 100mA
NPN input	ON impedance 1K ohm max. ON residual voltage: 2V max.
Panel size	48mm x 48mm
PNP input	high level: 4.5 30VDC; low level: 0 2VDC
Power consumption	less than 10VA or 5W
Power input	100 240VAC,50/60Hz or DC24V
Range of input voltage	85% 110%,rated voltage or DC21.6V 26.4V
Brand	Delta

Other Products in 'Delta Tachometers' category

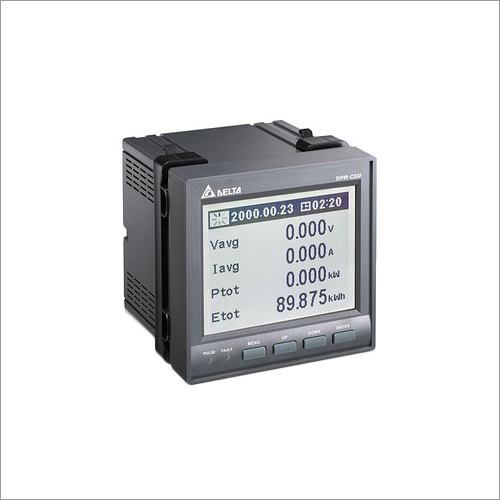

DPM-C530 Power Meter Price : 6150 INR/Unit Minimum Order Quantity : 1 Power Supply : 35~690V AC (LL) Product Type : DPMC530 Power Meter Usage : Highprecision Power Quality and Electricity Parameter Measurement Color : Black Power Consumption : 3.7 Watt (W)
